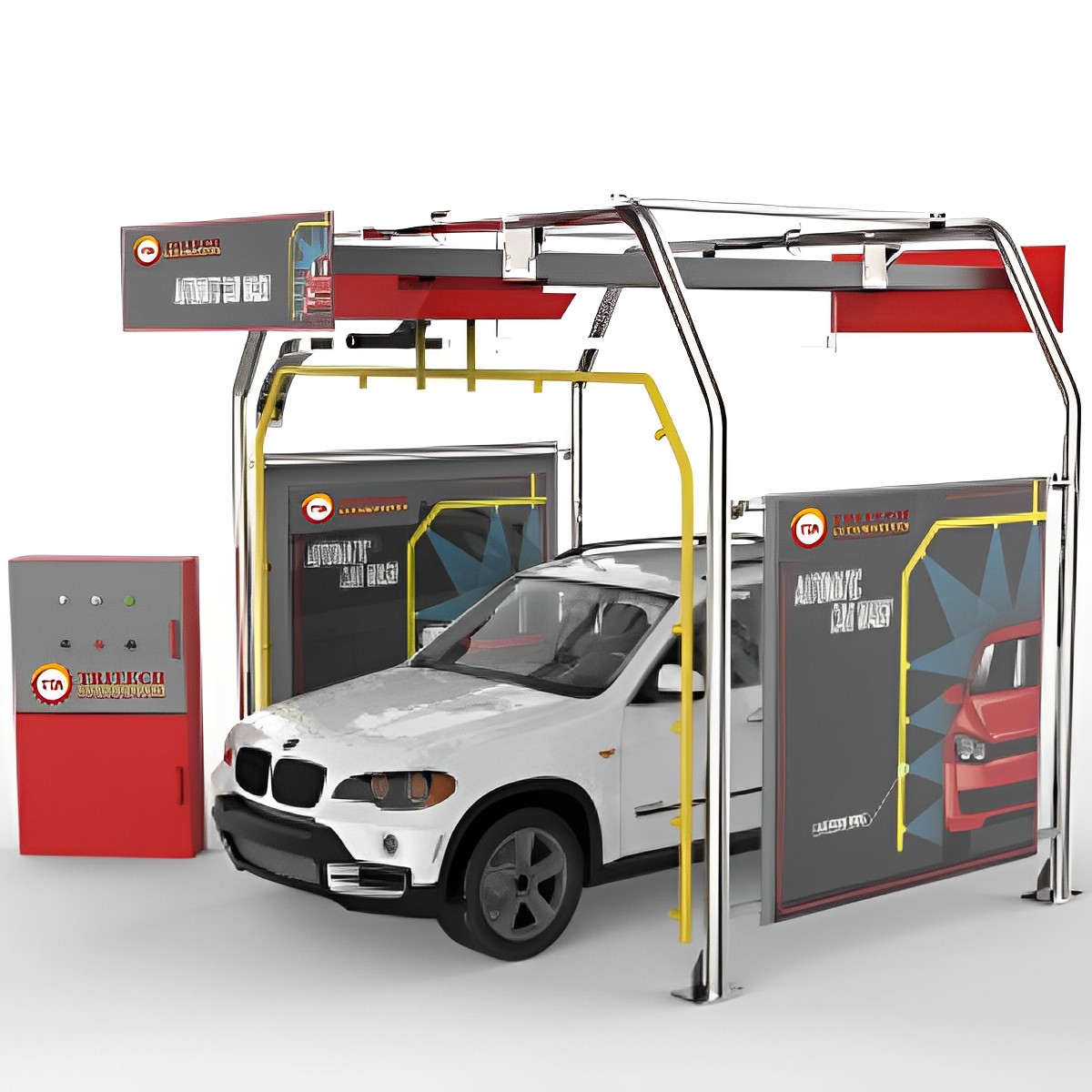

TTA Touchless Car Wash System an Inventive Solutions for Washing Equipment. The Touchless Car Wash Assuredly the finest equipment in India to serve best solution against manual washing.The TTA Touchless Carwash System does not use any brush to wash the car. Designed specifically for small,Medium & Premium Car sized in India, TTA Touchless Car systems Uses High Pressure Water Along With Foaming shampoo.

The system is controlled by using PLC (Programmable Logic Controller), which can control every activity such as time and steps of spraying process in order to get the optimum Results in short time.

TTA Car wash is effectively work on challenging areas like car under chassis Area, Car Bonnet & Car Trunk area.We exhibits a consistent performance of our TTA Touchless Car Wash System. We are India’s # No1 in Car Wash System with Effective, Excellence in Automotive Care. Authenticity & Secured product. Return of Investment in very small time spam.

TTA ( TJCWS) combines the action of three variable frequency drives to control the speed of linear motion, lateral movement, and spin. All of these controls, managed by advanced software, result in a highly effective and rapid touchless wash. This unique configuration means that the wash bay area is completely free of obstacles, and thus any type of vehicle can access it with ease and be washed by the user in complete safety.

TTA combines the action of three variable frequency drives to control the speed of linear motion, lateral movement, and spin. All of these controls, managed by advanced software, result in a highly effective and rapid touchless wash, which also achieves significant savings when compared to other touchless systems.

TTA Is flexible, too, offering a choice of options including various chemical sprays, waxes, foams, on-board drying, etc...

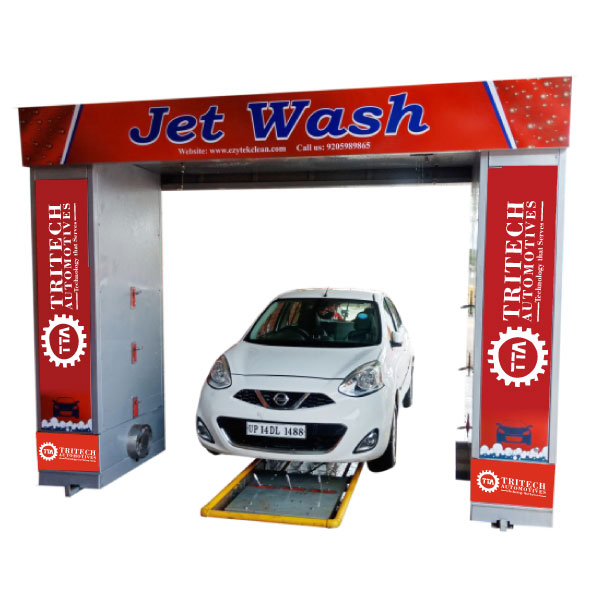

TTA Jet Wash uses the principle of high pressure water jets to displace dirt, grease and other foreign particles that get attached to the surface of the vehicle. Water droplets are compressed under pressure and ejected from a fine nozzle, giving it a very high kinetic energy.

This kinetic energy when applied to the particle of dirt dislodges it from the surface and lets is flow down with the detergent. The result is a shining vehicle within no time at all.

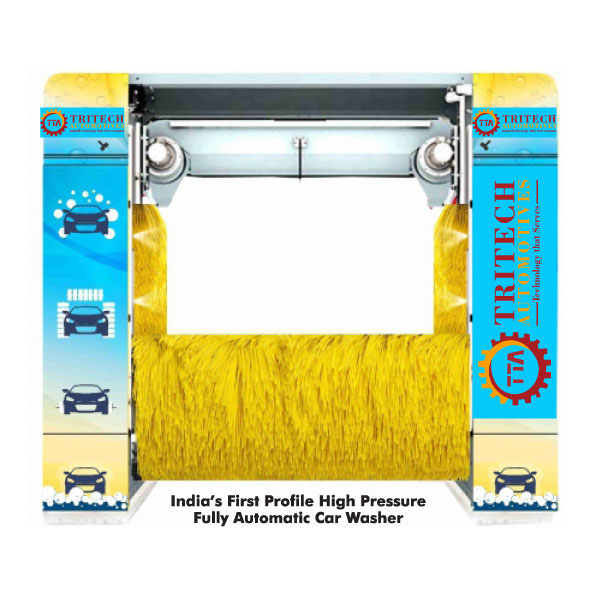

Technical Specifications
Machine Structure	Hot Dip Galvized & Powder Coating
No. of Brushes	3
Vertical Brushes	2
Horizontal Brushes	1
Brushes Pressure Sensing	Yes
Dryer	Automatic Profile Dryer
Power Required	18Kw
Electric Supply	415V 50Hz 3Phase Neutral With Earthing
Wheel Brush	Yes
Control Programming	PLC Programming
Control System	HMI Pannel Touch Screen Display
Washing Time Required	9 to 10 min
Underbody Wash	9 Oscillating Nozzle
Pump Power	10Hp
Power Consumption	2unit p/Vehicle
High Pressure	40 I/M Triple Cremic Pluger Pump
Profile Nozzle Pressure	150 bar
Dimension L*W*h	10*4*4 mtr

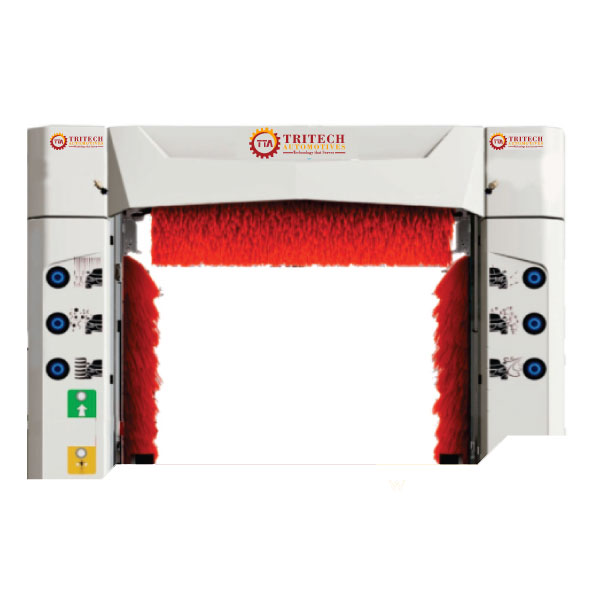

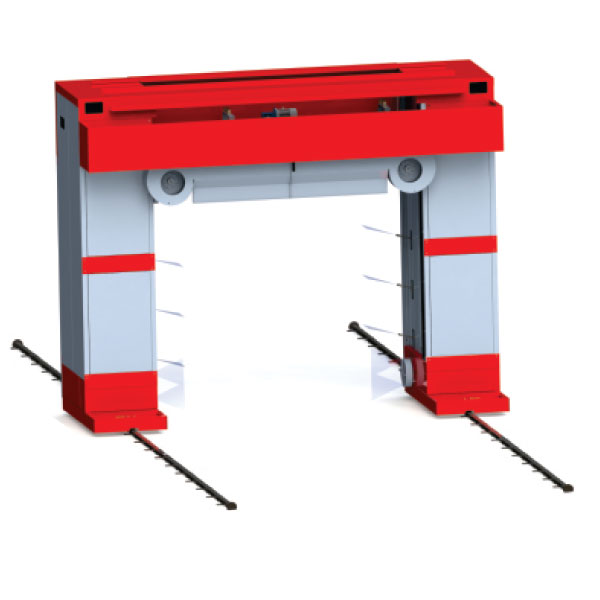

The TTA -ZX rollover designed by TTA will exceed all your expectations. The elegant modular design of this new series sets a new trend while meeting all your automatic vehicle wash needs.

The new generation of rollovers stands out in so many ways: looks, mechanics, flexibility, and versatility. It has been created to satisfy the needs of the most demanding professionals in the wash world. What's more, this new series has a special quality which makes it different to anything the market has ever known before: its adaptability.

The interior immediately appeals with its stylish modern design, which combines the latest technology and maximum reliability in the wash.

Technical Specifications

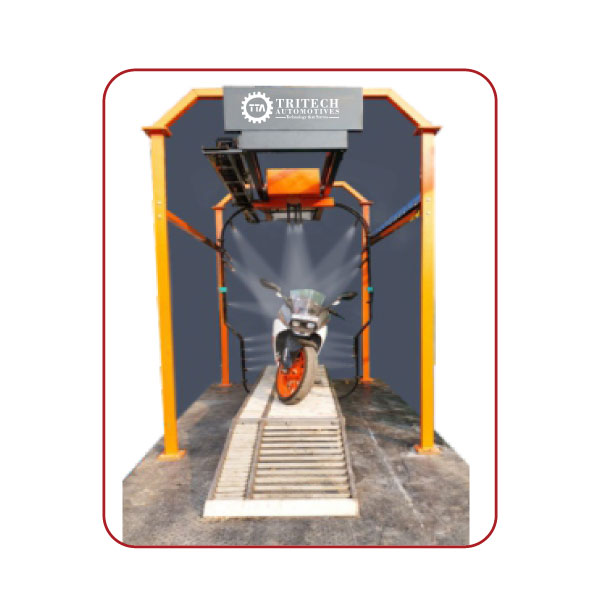

Model No.	TTA-ABW 20
Type	Automatic
Automation Grade	PLC Control
Water Consumption	70 Ltr/Bike
Material	Hotdip Galvanized with Powder Coated
Air Pressure	9 bar
Phase	3Phase
Voltage	420V
Electric Required	6 Kw
Electric Consumption	1.5unit/bike
Motor power	7.5 HP
Water Pressure	150 bar
Pump	triplex Plunger Pump
Type of Vehicle	Two Wheeler
No. of Washing cycle	3
washing Capacity	70 bike/day
pre-wash	Yes
Foam Wash	Yes
Area Required	10*10*10 in feet approx
Dryer	optional
